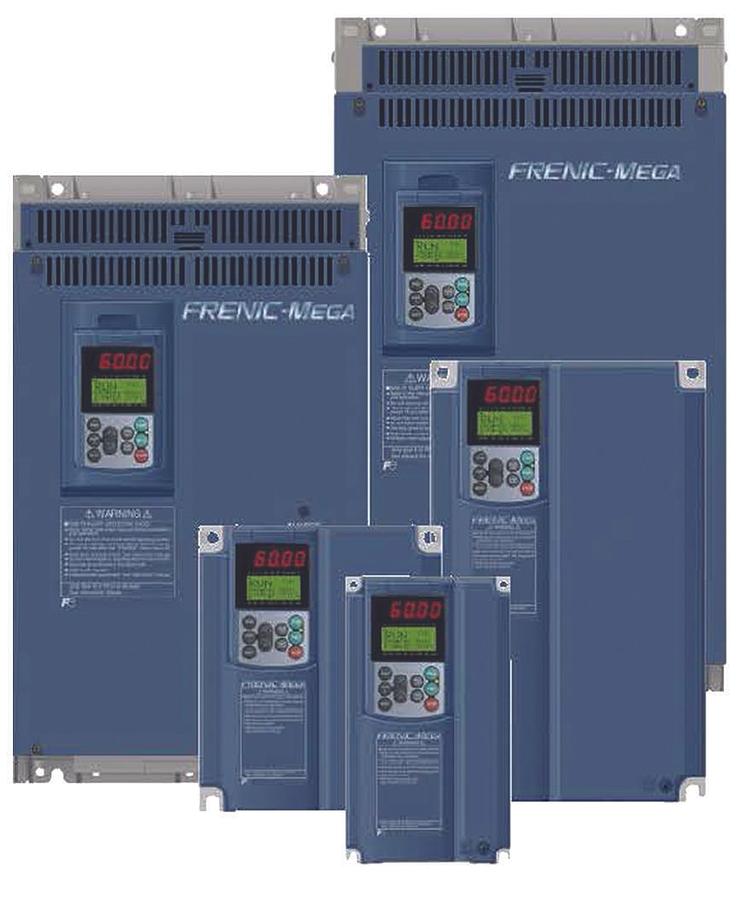

New Surplus Fuji Electric FRENIC-MEGA FRN001G1S-2U VFD 1HP, 230V
$459
Description
New Surplus In Box Fuji VFD
Best in class vector control for general-purpose inverters.
Powerful solutions for versatile applications.
Expanded power rating with flexible configuration.
Connectivity to many industrial networks.
Designed for long life cycle with improved maintenance functions.
Environmentally Friendly Designed.
Global compatibility.
*Actual Part May Vary From Image*
1 Year Warranty
PRIMSA INV-80
Specifications
| Manufacturer | Fuji |
| Model | FRN001G1S-2U |
| Condition | New |
| Stock Number | SD63841 |
| MPN | FRN001G1S-2U |
| Item Number | FRN001G1S-2U |
| Series | Mega |
| Nominal Input VAC | 240 Volts AC |
| Input Range VAC | 200 to 240 Volts AC |
| Input Phase | 3 |
| Application | Industrial |
| HP (CT) | 1 Horsepower |
| Amps (CT) | 5 Amps |
| HP (VT) | 1 Horsepower |
| Amps (VT) | 5 Amps |
| Max. Frequency | 120 Hertz |
| Braking Type | DC Injection; Dynamic Braking Transistor Included |
| AC Line Regenerative? | No |
| Closed Loop | Optional |
| Motor Control-Max Level | Open Loop Vector (Sensorless Vector) |
| Operator Controls | Keypad Included |
| Enclosure Rating | IP20 |
| Mounting | Panel |
| Height | 10.24 Inches |
| Width | 4.33 Inches |
| Depth | 5.71 Inches |
| H x W x D (in.) | 10.24 x 4.33 x 5.71 |
| Net Weight | 4.4 lbs |
