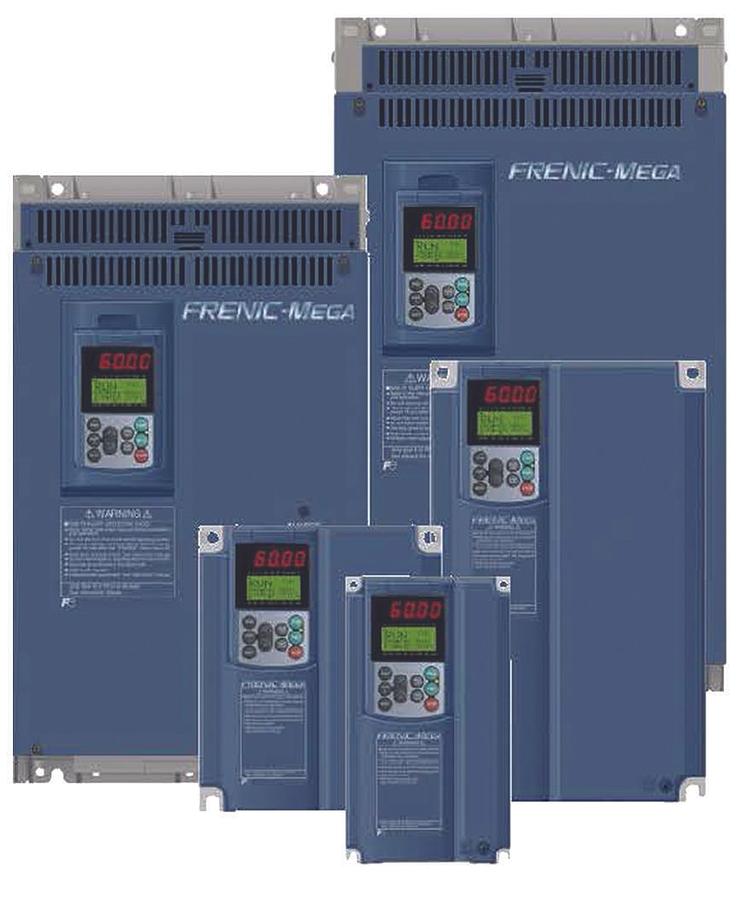

New Fuji Electric FRENIC-MEGA FRN003G1S-4U VFD 3 HP, 480V
$629
Description
Best in class vector control for general-purpose inverters.
Powerful solutions for versatile applications.
Expanded power rating with flexible configuration.
Connectivity to many industrial networks.
Designed for long life cycle with improved maintenance functions.
Environmentally Friendly Designed.
Global compatibility.
*ISA Stock*
*Actual Part May Vary From Image*
3 Year Warranty
FRENIC-HVAC Drive is warranted by Fuji Electric for a period of 36 months from date of shipment
CES1
Specifications
| Manufacturer | Fuji |
| Model | FRN003G1S-4U |
| Condition | New |
| Stock Number | SD63814 |
| MPN | FRN003G1S-4U |
| Item Number | FRN003G1S-4U |
| Item Category | Drives |
| Subcategory | AC |
| Series | Mega |
| Nominal Input VAC | 480 Volts AC |
| Input Range VAC | 380 to 480 Volts AC |
| Input Phase | 3 |
| Application | Industrial |
| HP (CT) | 3 Horsepower |
| Amps (CT) | 5.5 Amps |
| HP (VT) | 3 Horsepower |
| Amps (VT) | 5.5 Amps |
| Max. Frequency | 120 Hertz |
| Braking Type | DC Injection;Dynamic Braking Transistor Included |
| AC Line Regenerative? | No |
| Closed Loop | Optional |
| Motor Control-Max Level | Open Loop Vector (Sensorless Vector) |
| Operator Controls | Keypad Included |
| Enclosure Rating | IP20 |
| Mounting | Panel |
| Height | 10.24 Inches |
| Width | 5.91 Inches |
| Depth | 5.71 Inches |
| H x W x D (in.) | 10.24 x 5.91 x 5.71 |
| Net Weight | 6.6 lbs |
